PCIe M.2 SSD's

PCIe SSD 250S

Exhibiting more than just ultra speeds, the PCIe SSD 250S delivers unbridled performance, low latency, and high stability for advanced video editors, gamers, and software engineers. Built with the PCI Express® Gen 4 x4 interface, 3D NAND flash, 8-channel controller, and a DRAM cache, the PCIe SSD 250S is ready to put excellence in your hands.


Stunningly fast

Transcend's PCIe SSD 250S complies with the latest NVMe 1.4 standard, supporting the PCIe™ Gen4 x4 interface, meaning four lanes transmit and receive data simultaneously. Its 8-channel controller delivers sequential R/W up to 7,500/6,700 MB/s, and IOPS up to 540K, delivering captivating performance and response time for desktops and laptops like never before.


Note: Performance is based on CrystalDiskMark v6.0.2.

Level up with new-gen PCIe 4.0

The PCIe SSD 250S features the new PCIe 4.0 specification. It supports a bandwidth of 16 GT/s per lane as opposed to 8 GT/s per lane for PCIe 3.0. Downwards compatible with PCIe 3.0, PCIe 4.0 unleashes a higher processing speed for your computer and guarantees lower system latency. For content creators and gamers, this means a more seamless and immersive experience!

As cool as always

The PCIe SSD 250S has an integrated ultra-thin graphene heatsink to effectively improve the heat dissipation of the compact-sized SSD. The high conductivity of graphene quickly cools the system down, ensuring stable device performance.

Small in size, large in capacity

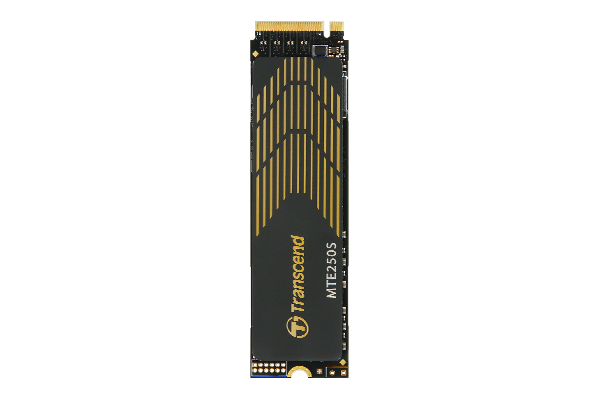

The PCIe SSD 250S comes in an M.2 2280 form factor. Despite its slim appearance, its capacity comes to 4TB, making it a great way for gamers, video editors, and software engineers to expand storage space!

Better endurance, higher reliability

Transcend's PCIe SSD 250S is engineered with LDPC (Low-Density Parity Check) coding, a powerful ECC algorithm, to keep data secure. Engineered with a dynamic thermal throttling mechanism, the temperature is precisely monitored and controlled for the PCIe SSD 250S, delivering superior endurance and stability for high-end applications.

SSD Scope software

Transcend SSD Scope is advanced, user-friendly software that makes it easy to ensure your Transcend SSD remains healthy, and continues to run fast and error-free by determining the condition and optimizing the performance of your drive.

Learn more

Guaranteed quality

The PCIe SSD 250S is covered by a five-year limited warranty. To ensure the utmost level of quality, Transcend SSDs undergo rigorous testing at all stages of production, including tests for vibration, temperature and humidity, speed, and functionality.

Specifications

Verschijning
AfmetingenSingle-sided: mm x mm x mm (" x " x ")
Double-sided: 80 mm x 22 mm x 3.77 mm (3.15" x 0.87" x 0.15")
Gewicht10 g (0.35 oz)
Type
  • M.2 2280

Interface
Bus Interface
  • NVMe PCIe Gen4 x4

Opslag
Flash Type
  • 3D NAND flash
Capaciteit
  • 1 TB
  • 2 TB
  • 4 TB

Werkomgeving
Werktemperatuur0°C (32°F) ~ 70°C (158°F)
Operating voltage
  • 3.3V±5%

Performance
Sequentieel Lezen/Schrijven (CrystalDiskMark)
  • TB
    Tot / MB/s
  • 4 TB
    Tot 7,500/6,700 MB/s
  • 2 TB
    Tot 7,100/6,500 MB/s
  • 1 TB
    Tot 7,200/6,200 MB/s
  • GB
    Tot / MB/s
  • GB
    Tot / MB/s
  • GB
    Tot / MB/s
  • GB
    Tot / MB/s
  • GB
    Tot / MB/s
4K Random Lezen/Schrijven (IOmeter)
  • TB
    Tot / IOPS
  • 4 TB
    Tot 540,000/440,000 IOPS
  • 2 TB
    Tot 530,000/420,000 IOPS
  • 1 TB
    Tot 530,000/420,000 IOPS
  • GB
    Tot / IOPS
  • GB
    Tot / IOPS
  • GB
    Tot / IOPS
  • GB
    Tot / IOPS
  • GB
    Tot / IOPS
Terabytes Written (TBW)
  • TB
    TBW
  • 4 TB
    3120 TBW
  • 2 TB
    1560 TBW
  • 1 TB
    780 TBW
  • GB
    TBW
  • GB
    TBW
  • GB
    TBW
  • GB
    TBW
  • GB
    TBW
Mean Time Between Failures (MTBF)3,000,000 Uren
Drive Writes Per Day (DWPD)0.43 (5 jaar)
Opmerking
  • Snelheid kan variëren als gevolg van hosthardware, software, gebruik en opslagcapaciteit.
  • De werkbelasting die wordt gebruikt om DWPD te beoordelen, kan verschillen van uw werkelijke werkbelasting, die kan variëren vanwege host hardware, software, gebruik en opslagcapaciteit.
  • Terabytes Written (TBW) drukt het uithoudingsvermogen onder de hoogste capaciteit uit.
  • Sommige moederborden bieden alleen PCIe x2-verbindingen voor het M.2-slot, waardoor zelfs op de snelste schijven knelpunten ontstaan.

Garantie
Certificaat
  • CE
  • UKCA
  • FCC
  • BSMI
  • KC
  • RCM
Garantie
  • 5 jaar beperkte garantie
Garantie beleid
  • Klik hier voor meer informatie over de garantievoorwaarden van Transcend hier.
  • De garantie is niet van toepassing wanneer de levensduur indicator van SSD Scope 0% aangeeft binnen de garantiedekking.
  • Het verwijderen van de heatsink kan schade aan de SSD veroorzaken die niet wordt gedekt door het garantiebeleid van Transcend.

Systeem vereisten
Operating System
  • Microsoft Windows 7 of later
  • Linux Kernel 2.6.31 of later
Opmerking
  • Systemen voor gebruik met de PCIe M.2 SSD moeten een M.2-connector hebben met alleen een M-key. B-key-connectoren zijn niet compatibel. Onjuiste plaatsing kan schade veroorzaken. Klik hier voor meer informatie.

Technologie
S.M.A.R.T.
Advanced garbage collection
RAID Engine
LDPC Coding
DRAM Cache

Awards

Excellence

Hardware.info
Netherlands

Hardware Info Excellent Award

Hardware.info
Netherlands

Order Information

1TB
  • TS1TMTE250S
2TB
  • TS2TMTE250S
4TB
  • TS4TMTE250S
